Tornado SD Series
Belt Driven Variable Speed Rotary Screw Air Copmressors Tank-Top Mounted With Air Dryer
Three In One!
Yigitsan Compressor, a leading manufacturer in Rotary Screw Air Compressors technology, provides space savings and reduces energy consumption in your business thanks to TORNADO SD Series . The TORNADO SD Series Compressors, which take up less space, are designed to serve medium-sized industrial establishments. TORNADO SD Series with flow capacities ranging from 0.17 m³/min to 3.8 m³/min, and is available in multiple pressure configurations. It can be designed as just an Air Reciever and compressor without using Compressed Air Dryers and Compressed Air Filters if desired. In this way, it offers different usage options. TORNADO SD Series saves space with its compact structure!
Tornado SD Series in Numbers
Motor
2,2 – 22 kW
Air Efficiency
0,17 – 3,8 m³/dk
Working Pressure
8-10-13 bar
Superior Features of Tornado SD Series
- Compact, Energy-Friendly, Flexible!
- Up to 40% energy efficiency
- Easy installation,
- Quick start-up
- Silent operation
- Long-lasting
- Economical service cost
- Electronic control feature
- Superior performance and high quality production,
- Designed for long-term efficient operation
- Offers the privilege of domestic production and ample spare parts
Capacity Table
| Model | Air Efficiency | Motor Power | Air Reciever | |||
|---|---|---|---|---|---|---|
| 8 bar m³/min. |
10 bar m³/min. |
13 bar m³/min. |
kW | HP | l | |
| TORNADO SD 3 | 0,37 | 0,25 | 0,17 | 2,2 | 3 | 200 |
| TORNADO SD 4 | 0,45 | 0,37 | 0,26 | 3 | 4 | 300 |
| TORNADO SD 5 | 0,54 | 0,41 | 0,32 | 4 | 5 | 300 |
| TORNADO SD 7 | 0,86 | 0,69 | 0,45 | 5,5 | 7,5 | 500 |
| TORNADO SD 10 | 1,2 | 0,9 | 0,7 | 7,5 | 10 | 500 |
| TORNADO SD 15 | 1,8 | 1,4 | 1,1 | 11 | 15 | 500 |
| TORNADO SD 20 | 2,3 | 2,1 | 1,7 | 15 | 20 | 500 |
| TORNADO SD 25 | 3,1 | 2,6 | 2,1 | 18,5 | 25 | 500 |
| TORNADO SD 30 | 3,8 | 3 | 2,6 | 22 | 30 | 500 |
All capacities are measured according to ISO 1217 standards at 1 BAR pressure and 20°C ambient temperature.
Sound levels are measured in accordance with Pneurop standards.
For detailed brochures, product availability, or consultancy services, please feel free to contact us.
We reserve the right to modify technical specifications without prior notice.

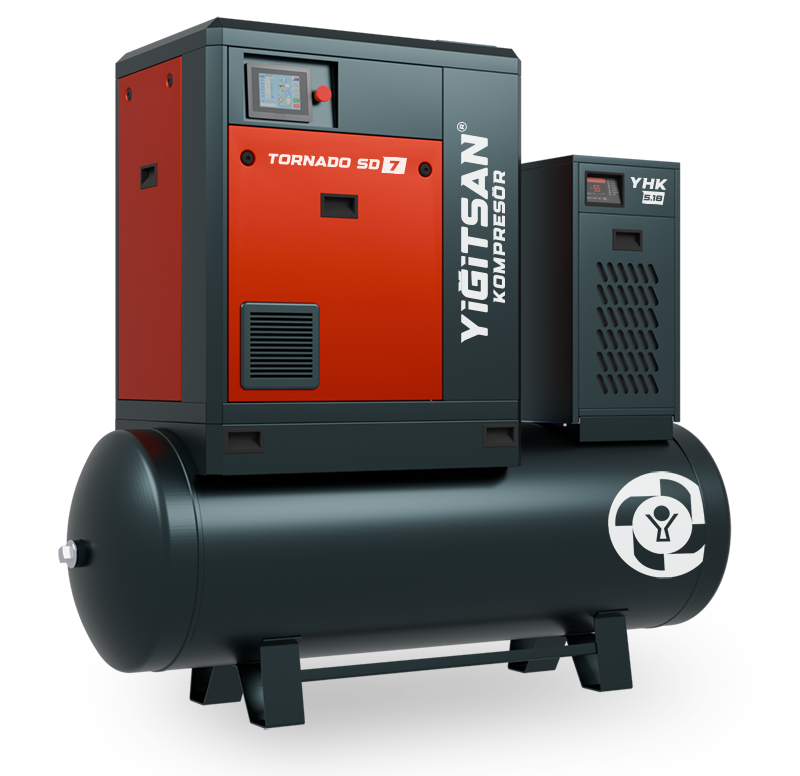

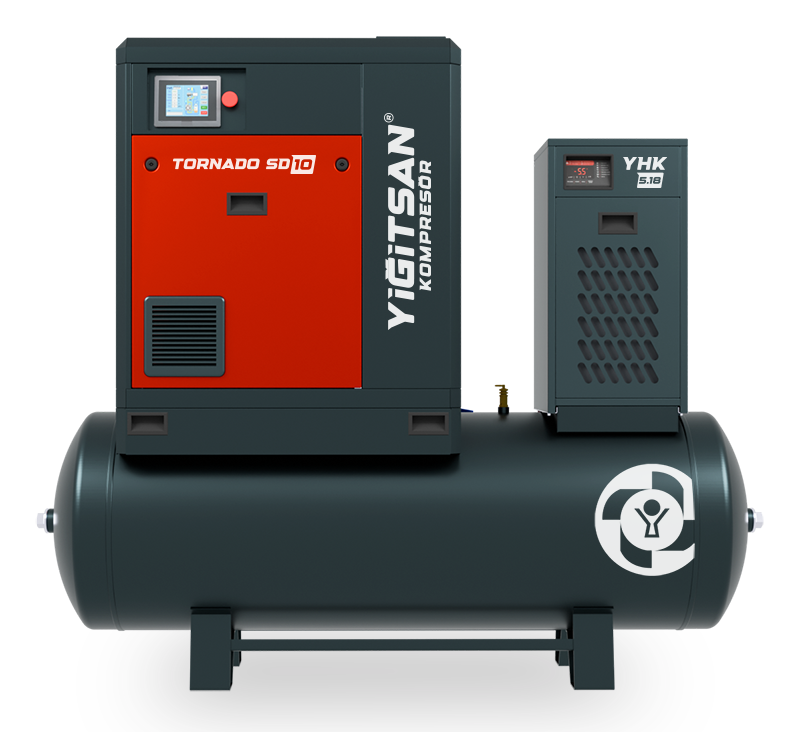

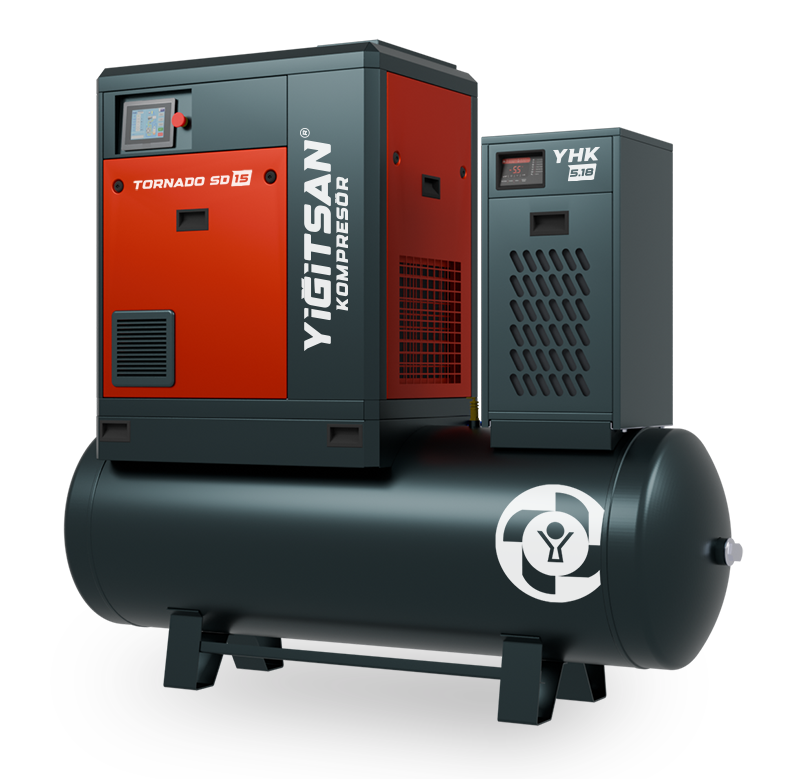

Gallery
