YBK Series
Refrigerated High Pressure Compressed Air Dryers
Clean, Dry And Quality Air…
With our YBK Series Refrigerated High Pressure Compressed Air Dryers, which are distinguished from their competitors with their stainless steel, brazed, plate heat exchanger and separator efficiency, we protect you and your business in your high pressure needs and provide maximum energy efficiency. The superior cooling system you need at high pressure is possible with the YBK Series!
YBK Series in Numbers
Capacity
0,95 – 65 m³/dk
Working Pressure
45 bar
Superior Features of YBK Series
- Suitable budget
- High performance
- Superior quality
- Compact design
- Silent operation
- Stainless steel, Brazed, Plate heat exchanger
- Wide service network and ample spare parts
Capacity Table
| Model | Max. Working Pressure | Capacity | Connection Size | |
|---|---|---|---|---|
| bar | psi | m³/dk | ||

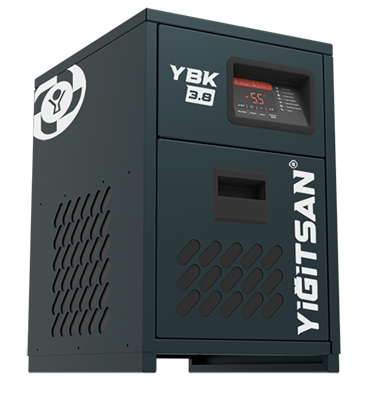

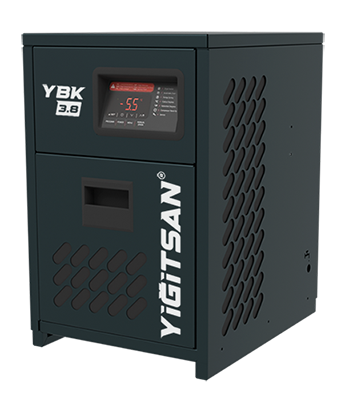

| YBK 3.8 | 45 | 652 | 0,95 | 3/4″ |
| YBK 4.13 | 45 | 652 | 1,35 | 3/4″ |
| YBK 5.18 | 45 | 652 | 1,8 | 3/4″ |
| YBK 6.23 | 45 | 652 | 2,6 | 3/4″ |
| YBK 7.33 | 45 | 652 | 3,3 | 3/4″ |
| YBK 7.45 | 45 | 652 | 4,5 | 1 1/4″ |
| YBK 8.50 | 45 | 652 | 5,5 | 1 1/4″ |
| YBK 9.62 | 45 | 652 | 6,5 | 1 1/4″ |
| YBK 9.73 | 45 | 652 | 7,3 | 1 1/4″ |
| YBK 10.09 | 45 | 652 | 10 | 1 1/4″ |
| YBK 11.13 | 45 | 652 | 13 | 1 1/4″ |
| YBK 12.14 | 45 | 652 | 15,5 | 1 1/4″ |
| YBK 13.17 | 45 | 652 | 17 | 2″ |
| YBK 14.20 | 45 | 652 | 21 | 2″ |
| YBK 15.25 | 45 | 652 | 26 | 2″ |

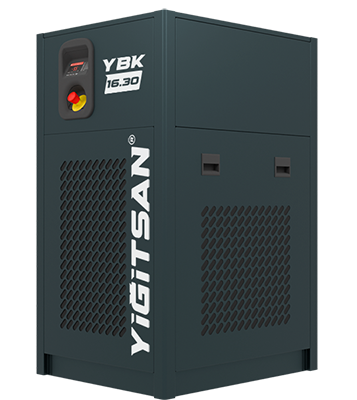

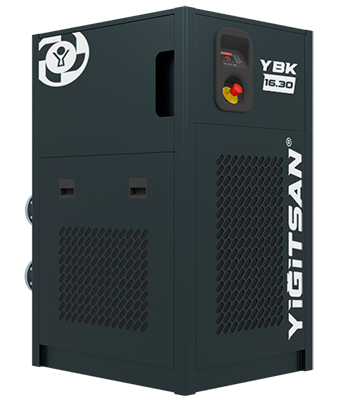

| YBK 16.30 | 45 | 652 | 30 | 2″ |
| YBK 16.35 | 45 | 652 | 36 | 2.1/2″ |
| YBK 17.44 | 45 | 652 | 44 | 2.1/2″ |
| YBK 17.55 | 45 | 652 | 55 | 2.1/2″ |
| YBK 18.60 | 45 | 652 | 65 | 2.1/2″ |
All capacities are measured according to ISO 1217 standards at 1 BAR pressure and 20°C ambient temperature.
Sound levels are measured in accordance with Pneurop standards.
For detailed brochures, product availability, or consultancy services, please feel free to contact us.
We reserve the right to modify technical specifications without prior notice.
