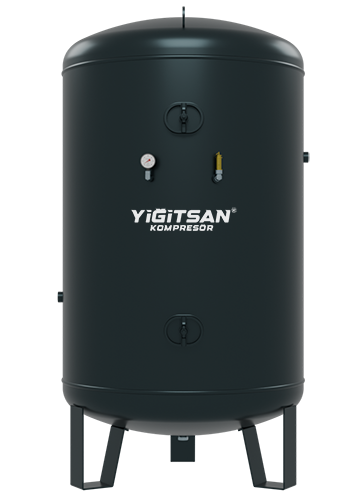

YHD Series
Air Receiver
It’s Not An Air Receiver, it’s An Energy Store!
Compressed Air Receiver acts as a kind of reserve energy storage for your business. If your compressor does not have a receiver to store compressed air, it will work over and over again to produce that air at high pressure and flow rates each time, which will cause increased energy use, wear on your machine’s equipment and shorten the lifespan of your machine. For this reason, as Yigitsan, our YHD Air Receiver, which we offer you with long-lasting, durable, stainless and galvanized options, keeps you safe, extends the life of your machine and minimizes your costs.
Superior Features of YHD Series
- Suitable budget
- High performance
- Superior quality
- Compact design
- Strong structure
- High protection
YHD Series in Numbers
Capacity
100 – 6.000 l
Working Pressure
10-15-40 bar
Capacity Table
| Model | Pressure | Capacity | ||
|---|---|---|---|---|
| bar | bar | bar | l | |
| YHD 100 | 10 | 15 | 40 | 100 |
| YHD 130 | 10 | 15 | 40 | 130 |
| YHD 200 | 10 | 15 | 40 | 200 |
| YHD 300 | 10 | 15 | 40 | 300 |
| YHD 500 | 10 | 15 | 40 | 500 |
| YHD 1000 | 10 | 15 | 40 | 1.000 |
| YHD 2000 | 10 | 15 | 40 | 2.000 |
| YHD 3000 | 10 | 15 | 40 | 3.000 |
| YHD 4000 | 10 | 15 | – | 4.000 |
| YHD 5000 | 10 | 15 | – | 5.000 |
| YHD 6000 | 10 | 15 | – | 6.000 |
All capacities are measured according to ISO 1217 standards at 1 BAR pressure and 20°C ambient temperature.
Sound levels are measured in accordance with Pneurop standards.
For detailed brochures, product availability, or consultancy services, please feel free to contact us.
We reserve the right to modify technical specifications without prior notice.
