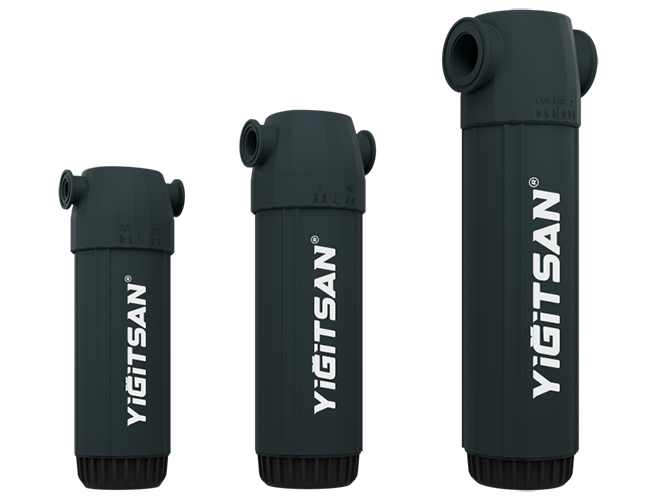

YHF Series
Compressed Air Filters
We Protect You In The Best Way!
Yigitsan offers sales and service for filtering the compressed air you need according to its areas of use. The filtration system captures all particles such as dust, dirt, and oil droplets in the compressed air and prevents them from damaging your system, decreasing your compressed air efficiency, and causing pressure losses. Protect your system from all external factors that may cause harm with our YHF Series Compressed Air Filters. You will feel much safer with our new generation filters, offered in different levels of precision and capacities!
Superior Features of YHF Series
- Suitable budget
- High performance
- Superior quality
- Compact design
- Strong structure
- High protection
- Wide service network and ample spare parts
YHF Series in Numbers
Capacity
1 – 46 m³/dk
Working Pressure
16 bar
Capacity Table
| Model | Max. Working Pressure | Capacity | Connection Size | |
|---|---|---|---|---|
| bar | psi | m³/min. | ||
| YHF 1.10 | 16 | 232 | 1 | 1/2″ |
| YHF 2.13 | 16 | 232 | 1,3 | 1/2″ |
| YHF 3.20 | 16 | 232 | 2 | 1/2″ |
| YHF 4.30 | 16 | 232 | 4,5 | 1 1/2″ |
| YHF 5.56 | 16 | 232 | 6,5 | 1 1/2″ |
| YHF 6.85 | 16 | 232 | 10 | 1 1/2″ |
| YHF 7.13 | 16 | 232 | 13 | 2″ |
| YHF 8.16 | 16 | 232 | 17 | 2″ |
| YHF 9.25 | 16 | 232 | 25 | 3″ |
| YHF 10.35 | 16 | 232 | 36 | 3″ |
| YHF 10.46 | 16 | 232 | 46 | 3″ |
All capacities are measured according to ISO 1217 standards at 1 BAR pressure and 20°C ambient temperature.
Sound levels are measured in accordance with Pneurop standards.
For detailed brochures, product availability, or consultancy services, please feel free to contact us.
We reserve the right to modify technical specifications without prior notice.
